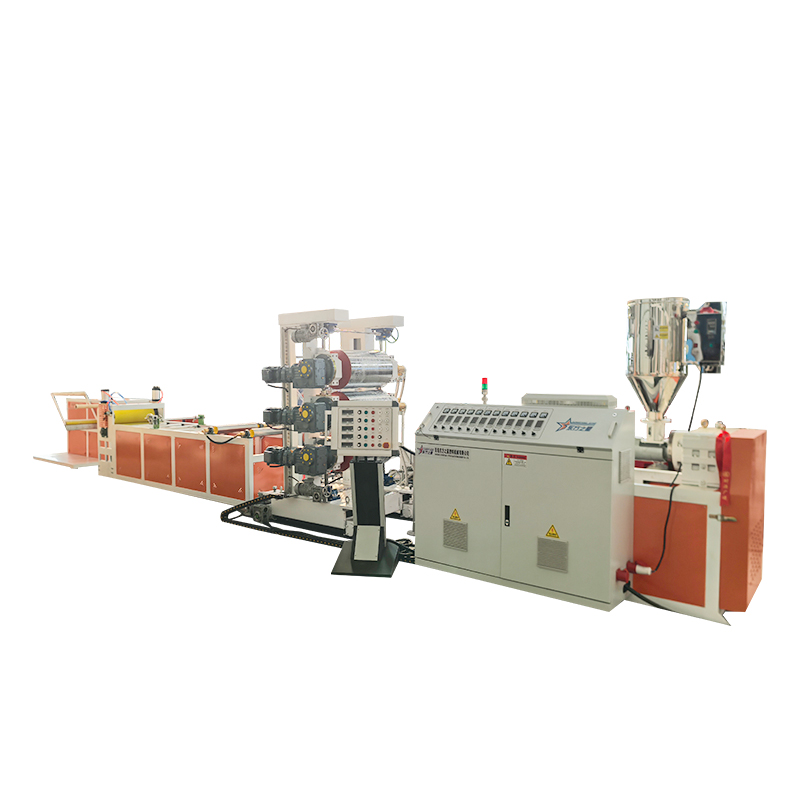

POK Plastic Sheet Extrusion Line

Model:SJ65/30

L'elevato punto di fusione e l'elevata cristallinità del materiale POK richiedono ottimizzazioni mirate basate su estrusori per lastre POK standard, principalmente in termini di precisione del controllo della temperatura ed efficienza di plastificazione.

Invia richiesta

Descrizione del prodotto

Features of the POK Plastic Sheet Extrusion Line

POK material's high melting point and high crystallinity require targeted optimizations based on standard POK sheet extruders, primarily in terms of temperature control accuracy and plasticizing efficiency.

1. POK Plastic Sheet Extrusion Line：High-precision temperature control, adapted to POK material characteristics

POK material has a melting point of approximately 220-230°C and is sensitive to temperature fluctuations. Multi-stage temperature control is required to ensure melt stability.

The barrel utilizes multiple independent heating and cooling systems, achieving a temperature control accuracy of ±1°C, preventing localized overheating and material degradation.

The die head (especially the coat-hanger die) utilizes a zoned heating design, achieving temperature control accuracy of ±0.5°C, ensuring uniform transverse sheet thickness.

Some high-end equipment is equipped with a melt temperature sensor, providing real-time feedback and temperature adjustment, further minimizing the impact of temperature fluctuations on the product.

2. POK Plastic Sheet Extrusion Line：Efficient plasticizing and stable extrusion ensure continuous production

POK material has a high viscosity, requiring enhanced shearing and conveying capabilities. Therefore, the equipment features specialized optimizations in the screw and extrusion system. The screw utilizes specialized flight structures (such as barrier and separation screws) to enhance shear mixing of the POK melt, ensuring full plasticization of the raw material and reducing unmelted particles.

A high-precision melt metering pump is standard, precisely controlling melt output, enabling sheet thickness tolerances to be controlled to ≤±0.05mm and improving extrusion stability.

The screen changer utilizes a fast screen change design (such as hydraulic automatic screen changer) to minimize melt pressure fluctuations during screen changes, avoiding product scrap caused by screen changes and ensuring continuous production.

3POK Plastic Sheet Extrusion Liner：Highly automated integration reduces operational barriers and costs.

Il controllo automatizzato riduce l'intervento manuale, migliorando l'efficienza e la coerenza della produzione.

POK Sheet Extruder Machine-Equipment List

numero dell'ordine	nome	quantità
1.	Sistema automatico di alimentazione + asciugatura	1 set
2．	Estrusore monovite SJ-65	1 set
3．	Stampo L-450 e cambio rete idraulico	1 set

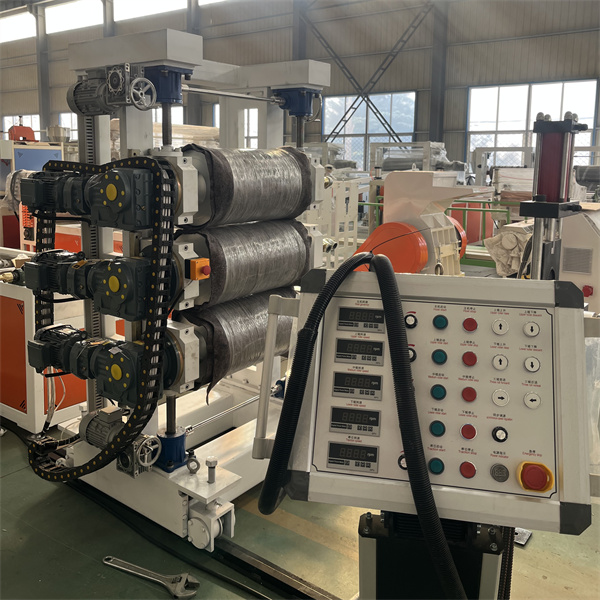

4．	Calandra a tre rulli L=600MM	1 set
5．	Sistema di controllo della temperatura del rotolo	1 set

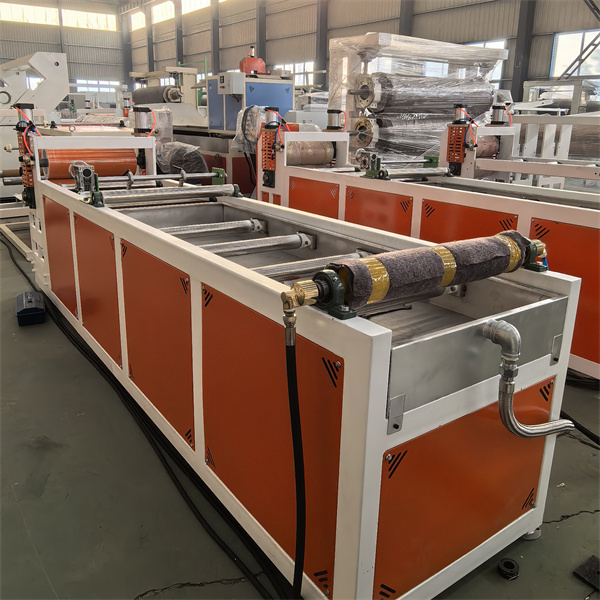

6．	Vassoio di raffreddamento, all'avanguardia	1 set

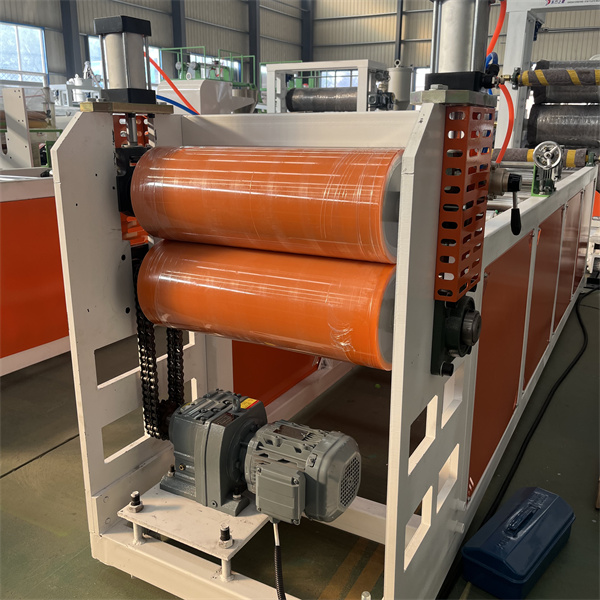

7．	motore da traino	1 set

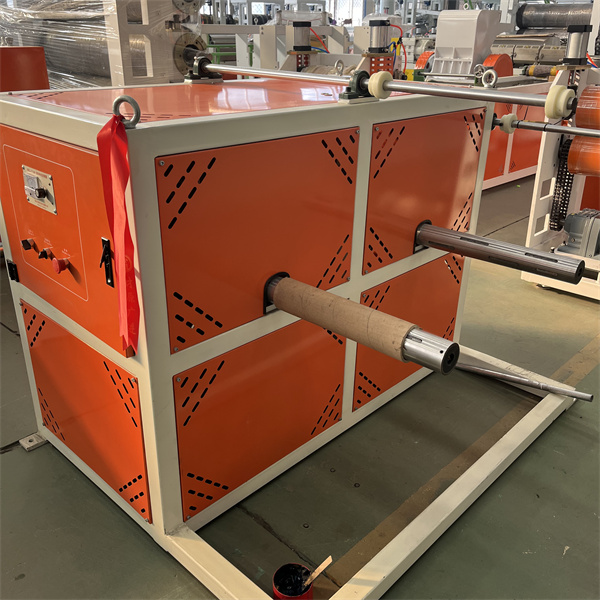

8．	Avvolgitrice duplex	1 set
9．	Sistema di controllo elettrico completo	1 set

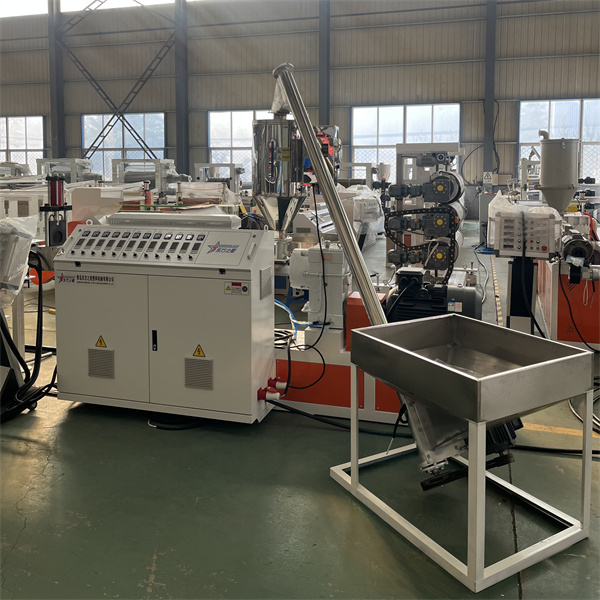

POK Linea di estrusione di fogli di plastica: estrusore monovite SJ65

Pokpom Sheet Extruder Machine

Canna a vite e controllo della temperatura

Materiale della vite	38CrMoAL, acciaio nitrurato
Durezza della vite	HV950
Materiale del cilindro	Tubing wear-resistant material, nitrided steel
Durezza della morte	Alta tensione 1050
Diametro della vite	65 mm
rapporto di prelievo	30/1
Potenza del motore principale	30KW
The total heating power of the host is increased	24KW
Metodo di riscaldamento tubolare	Fusione di alluminio o ceramica
Metodo di controllo della temperatura	Automatic temperature control, fan automatic cooling
